Product Detail

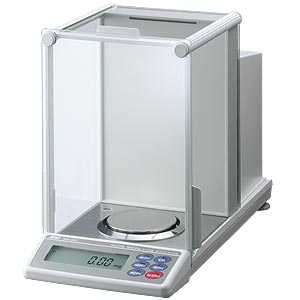

  • Semi-Micro Analytical Balances
  • ID: AND GH Series
  • Price: call
Features
 Semi-micro, 0.01 mg resolution up to 101 g (GH-252)
 Adjustable (manual or automatic) response characteristics to help cope with the effect of drafts and vibrations
 Automatic self calibration to maintain accuracy under temperature changes
 Anti-static glass breeze break with a thin evaporated metal coating
 Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, grain, specific gravity (either tael or tola can be added upon request)
 GLP/GMP/GCP/ISO compliant output
 Clock and calendar function
 Data memory function
 Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
 Percent mode function
 Auto power on function
 Underhook function
 Density determination function and an optional density determination kit
 Windows Communication Tools software (WinCT) on CD-ROM
External Input/Output
RS-232C interface
Quick USB interface (optional)
LAN – Ethernet interface with WinCT-Plus software (optional)
Options
GH-02: Quick USB interface with cable
GH-08: Ethernet interface with WinCT-Plus software

* GH-02 and GH-08 cannot be used at the same time.
Specifications
Model GH-202 GH-252 GH-120 GH-200 GH-300
Weighing capacity 51 g / 220 g 101 g / 250 g 120 g 220 g 320 g
Minimum weighing value 0.01 mg / 0.1 mg 0.1 mg
Repeatability (Standard deviation) 0.02 mg / 0.1 mg 0.03 mg / 0.1 mg 0.1 mg 0.2 mg
Linearity ±0.03 mg /±0.2 mg ±0.1 mg /±0.2 mg ±0.2 mg ±0.3 mg
Sensitivity drift (10 °C to 30 °C) ±2 ppm/°C (when automatic self calibration is not used)
Weighing pan Ø90 mm
PDFBrochure (PDF 531KB)
PDFManual (PDF 1.50MB)
PDFManual for WinCT-Plus (PDF 1.40MB)
