Product Detail

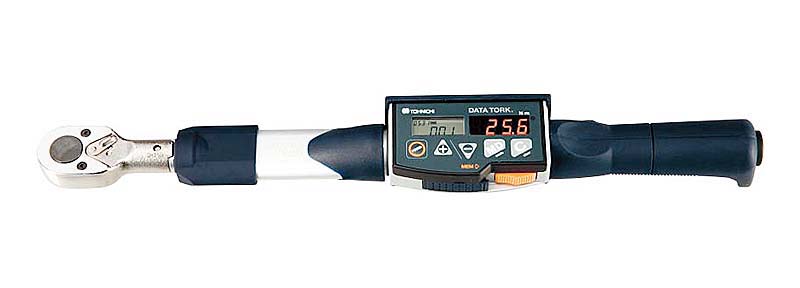

- Torque Wrench
- ID: CEM3-M
- Price: call
Features
- Industrial Grade Digital Torque Wrench Ideal for Quality Inspections
- Robust and durable aluminum body.
- Two Mode Selection: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque
- Dual LED and LCD Displays
- LCD screen is viewable under the direct light, while LED screen is vivid in dark places.
- Easily select unit of measure by keypad. Certificate supplied in SI units.
- 999 Data Memory Capacity with torque value, time/date stamp, and count
- Automatic or Manual Save Modes
- Set up Menu Selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgments, Buzzer, Auto- reset timer
- Supplied with Interchangeable Ratcheting Square Drive Head. A variety of other head types are sold separately
- Includes Rechargeable Battery and Charger
- Export data with Cable (sold separately)
- Included with cable purchase is Excel Receiver Software that allows data to be transferred into an Excel® Spreadsheet. (*Note: Excel® is a registered trademark of the Microsoft Corporation).
- Bluetooth Models Also Available: See Model CEM3-G-BT
- With CE mark. For international use including the EU region.
- Ergonomically designed and adapted for Color Vision Deficiencies (Tohnichi Unified Design).
- Applicable for international use including the EU region.
- Compliant with calibration procedures of ISO 6789 Type I Class C.
Dimensions
CEM10N3～50N3
CEM100N3～360N3
CEM500N3 & CEM850N3Specifications
|
Accuracy ±1% |
||||||
|
MODEL |
CEM10N3X8D-G |
CEM20N3X10D-G |
CEM50N3X12D-G |
CEM100N3X15D-G |
||
|
TORQUE RANGE |
MIN.～MAX. |
2～10 |
4～20 |
10～50 |
20～100 |
|
|
1 DIGIT |
0.01 |
0.02 |
0.05 |
0.1 |
||
|
TORQUE RANGE |
MIN.～MAX. |
20～100 |
40～200 |
100～500 |
200～1000 |
|
|
1 DIGIT |
0.1 |
0.2 |
0.5 |
1 |
||
|
TORQUE RANGE |
MIN.～MAX. |
0.2～1 |
0.4～2 |
1～5 |
2～10 |
|
|
1 DIGIT |
0.001 |
0.002 |
0.005 |
0.01 |
||
|
TORQUE RANGE |
MIN.～MAX. |
20～90 |
36～180 |
100～440 |
200～880 |
|
|
1 DIGIT |
0.1 |
0.2 |
0.5 |
1 |
||
|
TORQUE RANGE |
MIN.～MAX. |
1.5～7.3 |
3～14.5 |
7.5～36 |
15～73 |
|
|
1 DIGIT |
0.01 |
0.02 |
0.05 |
0.1 |
||
|
MAX. HAND FORCE [N] |
48.1 |
92.2 |
196.9 |
275.5 |
||
|
DIMENSION |
EFFECTIVE LENGTH (L) |
208 |
217 |
254 |
363 |
|
|
OVERALL LENGTH (L') |
212 |
214 |
282 |
384 |
||
|
HEAD (d3) |
8 |
10 |
12 |
15 |
||
|
WEIGHT [kg] |
0.46 |
0.47 |
0.58 |
0.63 |
||
|
INTERCHANGEABLE HEAD |
(SH,RH,QH,HH) |
(SH,SH-N,RH,QH,DH,HH) |
(SH,RH,QH,RQH,DH,HH) |
(SH,RH,QH,RQH,DH,HH) |
||
|
Accuracy ±1% |
||||||
|
MODEL |
CEM200N3X19D-G |
CEM360N3X22D-G |
CEM500N3X22D-G |
CEM850N3X32D-G |
||
|
TORQUE RANGE |
MIN.～MAX. |
40～200 |
72～360 |
100～500 |
170～850 |
|
|
1 DIGIT |
0.2 |
0.4 |
0.5 |
1 |
||
|
TORQUE RANGE |
MIN.～MAX. |
400～2000 |
720～3600 |
1000～5000 |
- |
|
|
1 DIGIT |
2 |
4 |
5 |
- |
||
|
TORQUE RANGE |
MIN.～MAX. |
4～20 |
7.2～36 |
10～50 |
17～85 |
|
|
1 DIGIT |
0.02 |
0.04 |
0.05 |
0.1 |
||
|
TORQUE RANGE |
MIN.～MAX. |
360～1700 |
650～3100 |
890～4400 |
- |
|
|
1 DIGIT |
2 |
4 |
5 |
- |
||
|
TORQUE RANGE |
MIN.～MAX. |
30～150 |
52～260 |
73～360 |
124～620 |
|
|
1 DIGIT |
0.2 |
0.4 |
0.5 |
1 |
||
|
MAX. HAND FORCE [N] |
428.3 |
498.6 |
549.5 |
608 |
||
|
DIMENSION |
EFFECTIVE LENGTH (L) |
467 |
722 |
910 |
1398 |
|
|
OVERALL LENGTH (L') |
475 |
713 |
949 |
1387 |
||
|
HEAD (d3) |
19 |
22 |
32 |
|||
|
WEIGHT [kg] |
0.78 |
1.13 |
4.00 |
5.14 |
||
|
INTERCHANGEABLE HEAD |
(SH,RH,QH,RQH,DH,HH) |
(SH,RH,QH,RQH,DH,HH) |
(SH,RH,QH) |
|||
|
DISPLAY |
7 segments LED 4 lines 10 mm |
|
14 segments LCD 6 lines 7 mm |
|
|
7 segments LED 4 lines 3 mm |
|
|
Battery Life Indicator ( 4 steppes ) |
|
|
Judgment LED RED / BLUE |
|
|
MEMORY |
999 (M-2 mode: 99 data) |
|
COMMUNICATION FUNCTIONS |
RS232C ( 2400-19200 bps ) |
|
Serial output corresponding to a USB connector |
|
|
POWER SUPPLY |
Ni-MH rechargeable battery |
|
CONTINUOUS USE |
Approx. 20 hrs with fully charged ( 8 hrs by 1 hrs recharging ) |
|
RECHARGING TIME |
Approx. 3.5 hrs |
|
OPERATION TEMPERATURE[℃] |
0～40 no condensation |
|
BASIC FUNCTION |
Peak Hold |
|
Peak Data Memory with date and time |
|
|
Auto Memory & Resetting |
|
|
Tightening Completion Buzzer |
|
|
Judgment of Measured Data |
|
|
Auto Zero setting |
|
|
Auto power off ( 3 min ) |
|
|
Clock |
