Vector Force Gauge
Tilt Sensor Improves Test Accuracy
Standard Features
- Tilt Sensor: Alerts user to deviation from the reference angle
- Backlit LCD display with user-friendly menus
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec ultra-high sampling rate
- 1,000 Data memory; automatically calculates Max, Min, Avg statistics
- USB and RS-232C output
- Selectable real time or peak mode operation
- Setting security lock prevents accidental changes
- Overload capacity 200% F.S.; Display flashes at overload limit
- Runs on internal Ni-MH batteries (user replaceable) or AC adapter; Charges with USB port or portable charger

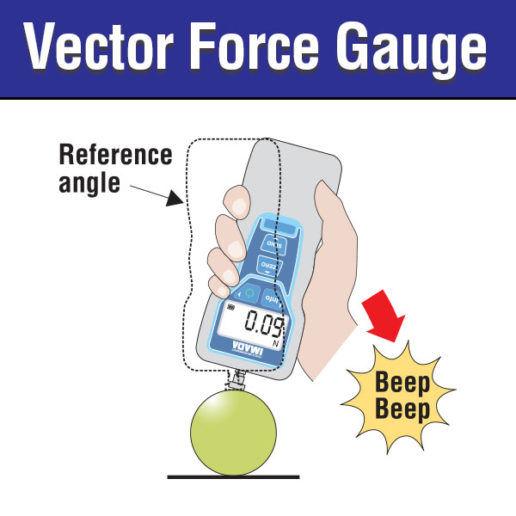

Tilt Sensor Helps users performing handheld measurements to push or pull at a consistent angle, improving measurement accuracy. The tilt alarm has three degrees of sensitivity 4°, 8° or 18° from the reference angle.
| Model | Capacity (Resolution) | ||||
| Ounces | Pounds | Grams | Kilograms | Newtons | |
| DSV-0.4A | 7.000 (0.001 ozf) | - | 200.0 (0.1 gf) | - | 2.000 (0.001 N) |
| DSV-1A | 17.00 (0.01 ozf) | - | 500.0 (0.1 gf) | - | 5.000 (0.001 N) |
| DSV-4A | - | 4.400 (0.001 lbf) | - | 2.000 (0.001 kgf) | 20.00 (0.01 N) |
| DSV-11A | - | 11.00 (0.01 lbf) | - | 5.000 (0.001 kgf) | 50.00 (0.01 N) |
| DSV-44A | - | 44.00 (0.01 lbf) | - | 20.00 (0.01 kgf) | 200.0 (0.1 N) |
| DSV-110A | - | 110.0 (0.1 lbf) | - | 50.00 (0.01 kgf) | 500.0 (0.1 N) |
| DSV-220A | - | 220.0 (0.1 lbf) | - | 100.0 (0.1 kgf) | 1000 (1 N) |
| DSV Specifications | |
| Tilt Alarm | OFF, Strict (4°), Normal (8°) or Loose (18°) |
| Accuracy | ± 0.2% F.S., ± 1 LSD |
| Selectable Units | lbf(ozf), kgf(gf) or Newtons |
| Display | 4 digit backlit LCD |
| Overload Capacity | Approx. 200% of F.S. |
| Overload Alarm | Audible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S. |
| Sampling Rate | 30,000/second |
| Internal Memory | 1,000 data with statistics |
| Battery Life | Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge |
| Battery Indicator | Battery icon displays three levels of charge |
| Setpoints | Programmable high/low setpoints with OK indicator |
| Outputs | USB, RS-232C |
| Operating Temp. | 32° to 100°F (0° to 40°C) |
| Accessories Included | AC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case |
