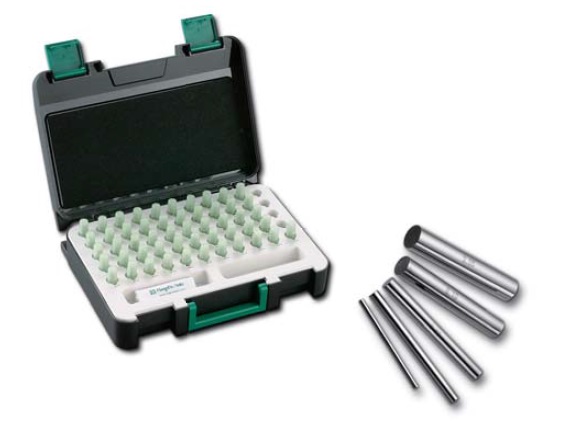

STELL PIN GAUGE SET AA series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Normal size (mm)
|
Step (mm)
|
Lenght (mm)
|
Tolerance (µm) |
Out of Roundness/ Cylinddricity (µm) |
Hardness (HV)
|
0.05...0.09 |
0.01 Step |
5~10 |
±0.5 |
0.5 |
More than 650
|
0.10...0.19 |
40
|
±0.8 |
0.200...0.999 |
0.001 Step
|
1.000...10.000
|
50 |
10.01...20.00 |
0.01 Step
|
±1.5 |
0.8 |
20.01...30.00
|
±2 |
1.6 |
30.01...41.00
|
— |
±3 |
3.0 |
|
|
STEEL PIN GAUGE SET SA series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Normal size (mm)
|
Step (mm)
|
Lenght (mm)
|
Tolerance (µm) |
Out of Roundness (µm) |
Out of Roundness/ Cylinddricity (µm) |
Hardness (HV)
|
0.100...0.199 |
0.001 step
|
40
|
±0.3
|
0.3
|
0.3 |
More than 650
|
0.200...0.999 |
1.000...7.000 |
50
|
7.001...7.010
|
7.011...10.000 |
±0.5 |
0.5 |
0.5 |
|
|
STEEL PIN GAUGE with HANDLE AG series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Nominal size (mm) |
Step (mm) |
Lenght (mm) |
Tolerance (µm) |
Out of Roundness (µm) |
Out of Cylindricity (µm) |
Hardness (HV) |
Gauge lenght |
Overall Lenght |
0.07...0.09 |
0.01 step |
3 |
41 |
±0.5 |
0.5 |
0.5 |
More than 650 |
0.10...0.19 |
±1.0 |
0.20...0.29 |
0.30...0.49 |
10 |
48 |
0.50...0.99 |
20 |
58 |
1.00...5.00 |
30 |
71 |
5.01...10.00 |
76 |
|
|
STEEL PIN GAUGE for GEAR MEASUREMENT OP series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Dimensional deviation (V and U) |
0.90mm ~ 10.00mm : ± 1 µm
10.01mm ~ 20.00mm : ± 1.5 µm
|
Out of Roundness/Cylindricity |
0.90mm ~ 10.00mm : ±1 µm
10.01mm ~ 20.00mm : ± 1.5 µm
|
Lenght |
50mm |
Hardness |
Over HV650 |
|
|
CARBIDE PIN GAUGE SET TAA series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Nominal size (mm) |
Step (mm) |
Lenght (mm) |
Tolerance (µm) |
Out of Roundness/Cylindricity (µm) |
0.50...0.99 |
0.01 step |
30 |
±1 |
0.8 |
1.00...2.99 |
38 |
3.00...10.00 |
50 |
10.01...14.00 |
±1.5 |
1.3 |
|
|
CARBIDE PIN GAUGE SET TAG series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Nominal size (mm) |
Step (mm) |
Lenght (mm) |
Tolerance (µm) |
Out of Roundness/Cylindricity (µm) |
0.50...0.99 |
0.01 step |
25 |
63 |
±1 |
0.8 |
1.00...2.99 |
28 |
69 |
3.00...4.99 |
30 |
71 |
5.00...10.00 |
76 |
|
|
CERAMIC PIN GAUGE SET CAA series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Nominal size (mm) |
Step (mm) |
Lenght (mm) |
Tolerance (µm) |
Out of Roundness/Cylindricity (µm) |
0.50...2.49 |
0.01 step |
38 |
±1 |
0.8 |
2.50...2.99 |
3.00...3.49 |
50 |
3.50...9.99 |
10.00 |
— |
|
|
CERAMIC PIN GAUGE SET CAG series
Maker: SK (Niigata Seiki)
|
SPECIFICATIONS |
Nominal size (mm) |
Step (mm) |
Lenght (mm) |
Tolerance (µm) |
Out of Roundness/Cylindricity (µm) |
0.50...0.99 |
0.01 step |
28 |
66 |
±1 |
0.8 |
1.00...3.49 |
28 |
69 |
3.50...4.99 |
30 |
71 |
5.00...10.00 |
30 |
76 |
|
