Product Detail

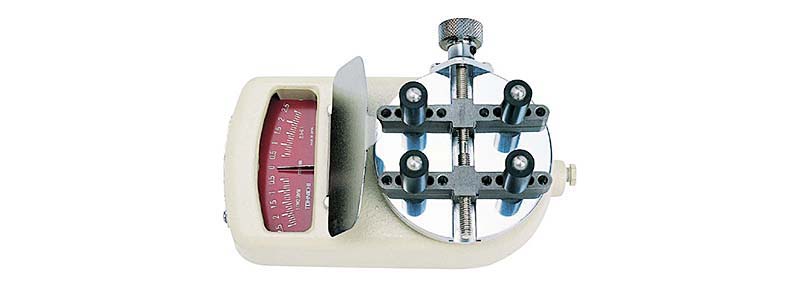

  • Torque Meter
  • ID: 5TM
  • Price: call

Features

  • Torque meter for low torque (below 75mN • m).
  • Same features as TM designed for measuring low torque. Bi-directional operation.
  • Can measure rotary resistances of precision instruments and tightening torque.
  • Equipped with 4 poles that can change positions according to the object's shape and hold it firmly during testing.
  • No need to fix the tester on the table with bolts, which gives greater portability.
  • Dimensions

    product dimensions

Specifications

Accuracy±2%

S.I. MODEL

5TM1MN

5TM1.5MN

5TM2.5MN

5TM5MN

5TM7.5MN

TORQUE RANGE
mN  m

MIX.MAX.

0.2~1

0.2~1.5

0.5~2.5

1~5

1~7.5

GRAD.

0.05

0.1

0.2

METRIC MODEL

5-OT10

5-OT15

5-OT25

5-OT50

5-OT75

TORQUE RANGE
gf  cm

MIX.MAX.

2~10

2~15

5~25

10~50

10~75

GRAD.

0.5

1

2

AMERICAN MODEL

5TM0.15Z

5TM0.2Z

5TM0.35Z

5TM0.7Z

5TM1Z

TORQUE RANGE
ozf  in

MIX.MAX.

0.02~0.15

0.04~0.2

0.05~0.35

0.3~0.7

0.2~1

GRAD.

0.005

0.01

0.02

0.05

DIMENSION
mm

OVERALL LENGTH

L'

122

WIDTH

B

76.5

HEIGHT

H

23.5

CHUCK GRIP

ΦD

6~58

CHUCK PART

ℓ1

10.~46

ℓ2

14~50

WEIGHTkg

0.3

 File Manual PDF
