Product Detail

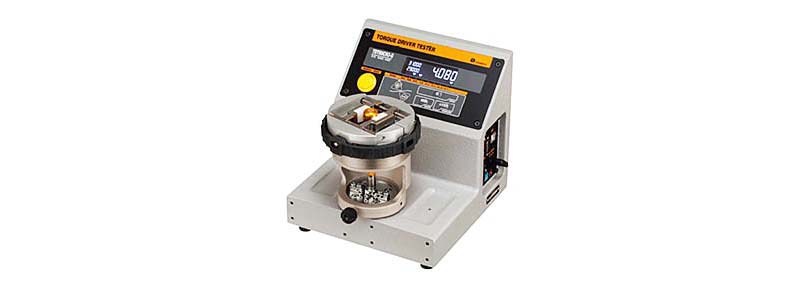

- Torque Screwdriver Tester
- ID: TDT3-G
- Price: call ( demo )
- High-accuracy digital torque screwdriver tester with loading device eliminates measurement errors.
- Digital type torque screwdriver tester eliminates visual reading errors.
- The loading device keeps stable measuring conditions to avoid reading errors.
- The measuring range is wide and applicable for various types of torque drivers.
- Comes with Pass/Fail judgment feature. Judgment results are shown in three colors (white/red/blue), for easy result recognition.
- Power source: AC100V-240V. Battery pack is available as an option.
- We have experience manufacturing products with American units of measurement (lbf, in, etc.) for Japan's aircraft manufacturing industry and for export to the U.S., and products with metric units of measurement (kgf, cm, etc.) for export to other parts of the world.
- Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free. *Note: Excel® is a registered trademark of the Microsoft Corporation.
-
Dimensions
TDT3-G+STA, TDT3-G+LTA
TDT3+TDTLA3
Specifications
|
Accuracy ± 1%+1digit |
|||||||||||||
|
MODEL |
TDT60CN3-G |
TDT600CN3-G |
|||||||||||
|
TORQUE RANGE |
MIN.～MAX. |
2～60 |
20～600 |
||||||||||
|
1 DIGIT |
0.005※ |
0.05※ |
|||||||||||
|
TORQUE RANGE |
MIN.～MAX. |
0.2～6 |
2～60 |
||||||||||
|
1 DIGIT |
0.0005※ |
0.005※ |
|||||||||||
|
TORQUE RANGE |
MIN.～MAX. |
3～80 |
30～800 |
||||||||||
|
1 DIGIT |
0.005※ |
0.05※ |
|||||||||||
|
TORQUE RANGE |
MIN.～MAX. |
0.2～5 |
2～50 |
||||||||||
|
1 DIGIT |
0.0005※ |
0.005※ |
|||||||||||
|
INLET DRIVE［mm］ |
6.35 HEX (Male) with a groove (minus 0.7mm) |
||||||||||||
|
WEIGHT [kg] |
11 |
||||||||||||
|
|
|||||||||||||
|
DATA MEMORY |
1000 data (99 data in M99 mode) |
||||||||||||
|
STATISTICAL PROCESSING |
Number of samples/max./min./mean value |
||||||||||||
|
UPPER/LOWER LIMIT VALUE SETTING |
10 settings |
||||||||||||
|
MEASURING MODE |
PEAK/RUN |
||||||||||||
|
ZERO ADJUSTMENT |
Automatic |
||||||||||||
|
DATA OUTPUT |
RS232C（compliant), USB（B type）serial communication |
||||||||||||
|
RESET |
Manual/Auto (0.1～5.0 sec. selectable) |
||||||||||||
|
OPERATING TEMPERATURE RANGE［℃］ |
0～40 (no condensation) |
||||||||||||
|
POWER AC［V］ |
100～240 ±10% 50/60Hz ※12V（Battery pack BP-100-3 (Optional Accessory）in use) |
||||||||||||
|
MODEL |
STA（For LTD/RTD LTA（For FTD/STC） |
TDTLA3（For small torque wrench） |
|||
|
APPLICABLE GRIP DIAMETER φD［mm］ |
7～50 |
－ |
|||
|
APPLICABLE GRIP HEIGHT |
STANDARD BIT |
H1 |
105 |
211 |
|
|
BIT S |
H2 |
80 |
286 |
||
|
BIT Ｌ |
H3 |
－ |
154 |
||
|
INLET DRIVE □a［mm] |
－ |
6.35 |
|||
|
|
|
|
|||
|
MEASURABLE EFFECTIVE LENGTHＬ［mm] |
－ |
90～220 |
|||
