Product Detail

  • Torque Wrench Tester
  • ID: DOTE4-G-7
  • Price: call

Features

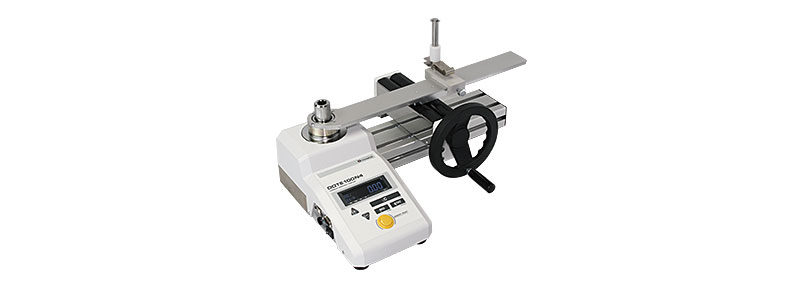

  • DOTE4-G Digital torque wrench tester with manual loader. Ideal for torque wrench calibration and adjustment.
    • Also available with Motor Drive Loader: Model DOTE4-G-MD
    • Motor Drive Retrofit Kit Available for DOTE4-G to upgrade standard model to motor drive version.
  • Pole holder and plate are equipped on all models, which helps keep wrenches in optimal testing postion.
  • Auto-zero function.
  • Up to 1000 measurement data items can be stored in the memory.
  • Peak/Run modes with 10 customizable hi/lo judgment patterns
  • Color Judgment Display makes it easy to confirm readings are within your set parameters
  • Global units of measure selection by keypad: cNm, NM, kgf.cm, kgf.m, lbf.in, lbf.ft
  • Sample quantity, maximum value (Hi), minimum value (Lo) and mean value can be displayed.
  • Manual and Auto Reset from 0.1~5.0 seconds
  • RS232C output and USB for easy connection to PC or Printer EPP16M3 (cables sold separately)
  • Uses AC100 to 240V +/10% 50/60Hz # BA-6, AC Adapter Included
  • Excel Receiver software sends collected data to a Excel®** for data management. (Provided as free download with purchase of cable) Note: Excel® is a registered trademark of the Microsoft Corporation.
  • Includes Calibration Certificate: ILAC MRA
  • Calibration Kits (sold separately) to check and adjust accuracy of tester on periodic basis. (or send to Tohnichi Service Center)
  • CE markings applied for use in the EU.
  • Dimensions

    product dimensionsDOTE4-G-MD2

Specifications

Accuracy ± 1%+1digit

MODEL

DOTE20N4-G

DOTE50N4-G

DOTE100N4-G

DOTE200N4-G

DOTE500N4-G

DOTE1000N4-G

Description

Manual Loader

MODEL

DOTE20N4-G-MD2

DOTE50N4-G-MD2

DOTE100N4-G-MD2

DOTE200N4-G-MD2

DOTE500N4-G-MD2

DOTE1000N4-G-MD2

Description

Motor Driven Loader

TORQUE RANGE
[N • m]

MIN.MAX.

2.000~20.000

5.00~50.00

10.00~100.00

20.00~200.00

50.0~500.0

100.0~1000.0

[N • m]

1 digit

0.002

0.005

0.01

0.02

0.05

0.1

TORQUE RANGE
[N • cm]

MIN.MAX.

200.0~2000.0

--

--

--

--

--

[N • cm]

1 digit

0.2

--

--

--

--

--

TORQUE RANGE
[kgf • m]

MIN.MAX.

--

--

--

--

5.00~50.00

10.00~100.00

[kgf • m]

1 digit

--

--

--



0.005

0.01

TORQUE RANGE
[kgf • cm]

MIN.MAX

20.00~200.00

50.0~500.0

100~1000.0

200.0~2000.0

--

--

[kgf • cm]

1 digit

0.02

0.05

0.1

0.2

--

--

TORQUE RANGE
[lbf • in]

MIN.MAX.

18.00~180.00

44.0~440.0

88.0~880.0

170.0~1700.0

440~4400

880~8800

[lbf • in]

1 digit

0.02

0.05

0.1

0.2

0.5

1

TORQUE RANGE
[lbf •ft]

MIN.MAX.

--

3.60~36.00

7.30~73.00

15.00~150.00

36.0~360.0

73.0~730.0

[lbf •ft]

1 digit

--

0.005

0.01

0.02

0.05

0.1

TORQUE WRENCH MAX EFFECTIVE LENGTH Lmm

410

660

1020

1650

INLET DRIVE □amm

9.53

12.7

19.05

25.4

DIMENSION
mm

OVERALL LENGTH

L'

511

771

1141

1771

OVERALL WIDTH

B

263

490

546

630

OVERALL HEIGHT

H

221

278

304

361

BODY

B1

245

265

B2

221

241

L1

150

L2

5.6

15.6

H1

87

117

139

H2

142

162

201

222

WEIGHT kg

11

13

24

45

WEIGHT [kg] with Motor Drive









ACCESSORIES
mm

DOWN ADAPTER SQ.
(MALE-FEMALE)

□9.53 - □6.35

□12.7 - □6.35
□12.7 - □9.53

□19.05 - □12.7

ADAPTER SQ.MALE
- HEX
FEMALE

□9.53 - W10 • 13 • 19
□9.53 - W12 • 14 • 17

□12.7 - W10 • 13 • 19
□12.7 - W12 • 14 • 17

□12.7 - W17 • 22 • 27
□12.7 - W19 • 24 • 30

□19.05 - W22 • 27 • 29
□19.05 - W30 • 32 • 36

□25.4 - W34 • 41
□25.4 - W46 • 50

DISPLAY

Black Mask, LCD, White-Red-Blue

DATA MEMORY

1000 data

Hi/Lo Setting Pattern

10 Setting Patterns, A through J

STATISTICAL PROCESSING

Number of samples/max./min./mean value

MEASURING MODE

PEAK/RUN

ZERO ADJUSTMENT

Automatic (press C key)

DATA OUTPUT

RS232C compliant (Factory default: PC output, Printer: key setting)

RESET

Manual/Auto (0.5~5.0 sec. freely changeable by 0.1 sec)

OPERATING TEMPERATURE RANGE[℃]

0~40 (no condensation)

POWER ACV

100~240 ±10% 50/60Hz

POWER CONSUMPTION [W]

Less than 5W

MD2-Set Retrofit Kit

Model

Componets of Set

Applicable Model

Motor Unit/Limiter

Controller Unit

Power Unit

Power Cord

Voltage

MD2-SET-SA

M-MD2-S

C-MD2

DR-MD2-S

PC-MD2A

100-125V

DOTE20N4-G, DOTE50N4-G, DOTE100N4-G, DOTE200N4-G

MD2-SET-SC

PC-MD2C

100-240V

MD2-SET-LA

M-MD2-L

DR-MD2-L

PC-MD2A

100-125V

DOTE500N4-G, DOTE1000N4-G

MD2-SET-LC

PC-MD2C

100-240V

Components
M-MD2-S C-MD2 DR-MD2-S PC-MD2A

Note: Retrofit motor set can only be used with DOTE version 4 and is not compatible with previous DOTE versions.

Standard accessories

  • AC adapter (BA-6)
  • Socket (not included in DOTE200N3-G, DOTE500N3-G)
  • Hex adapter

Replacement Part # for Standard Hex Adapters



Part No.

Hex Adapter
mm

Drive Size
inch

02T07237

10, 13, 19

3/8

03T07237

12, 14, 17

3/8

07T07086

10,13,19

1/2

08T07086

12,14,17

1/2

01T07254

19, 24, 30

3/4

02T07254

17, 22, 27

3/4

01T09662

30, 32, 36

3/4

02T09662

22, 27, 29

3/4

02T36938

41, 50

1

01T36938

36, 46

1

Note: Hex adapters are required when testing open end or ring type torque wrenches. Additional sizes available as optional accessory (see link below) or can be special ordered to your requirements upon request.

 File Manual PDF
