Product Detail

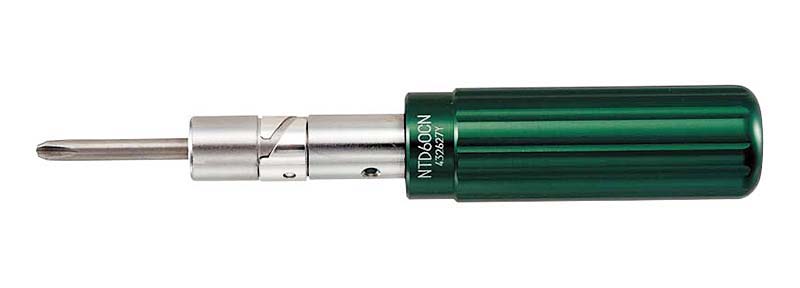

- Torque Screwdriver
- ID: NTD
- Price: call
Features
- Preset Limiting Torque Screwdriver (Non-rotary slip)
- Preset style is ideal for applications which require the same torque value such as assembly work.
- Preset type has no external scale; requires adjusting key and torque tester to set torque.
- Torque setting service can be requested for a nominal fee.
- Features enhanced reliability and durability with Tohnichi's toggle clutch torque mechanism.
- Upon reaching the set torque, user will sense the limit. The tool will spring back slightly and user must stop turning.
- Accepts standard 1/4" root hex bits (sold separately)
- NTD500CN and NTD1000CN come with an auxiliary handle.
- Counterclockwise tightening model available upon request.
- For Adjustable version, see LTD Models
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class E.
|
Accuracy ± 3% |
|||||||||
|
MODEL |
NTD15CN |
NTD30CN |
NTD60CN |
NTD120CN |
NTD260CN |
NTD500CN |
NTD1000CN |
||
|
TORQUE RANGE |
MIN.～MAX. |
5～15 |
10～30 |
20～60 |
40～120 |
100～260 |
200～500 |
400～1000 |
|
|
TORQUE RANGE |
MIN.～MAX. |
0.5～1.5 |
1～3 |
2～6 |
4～12 |
10～26 |
20～50 |
40～100 |
|
|
TORQUE RANGE |
MIN.～MAX. |
0.5～1.3 |
1～2.5 |
2～5 |
4～10 |
10～22 |
20～40 |
40～90 |
|
|
APPLICABLE SCREW |
SMALL SCREW |
（M1.8） |
M2（M2.2） |
M2.5,M3 |
（M3.5） |
M4（M4.5） |
M5, M6 |
（M7） |
|
|
TAPPING SCREW |
（M1.4）M1.6 |
（M1.8）M2 |
（M2.2）M2.5 |
M3（M3.5） |
M4 |
（M4.5） |
M6 |
||
|
DIMENSION |
OVERALL LENGTH |
L' |
95 |
110 |
120 |
155 |
|||
|
GRIP |
D1 |
19.5 |
24 |
30.5 |
33 |
43 |
|||
|
BODY COLOR |
Green |
||||||||
|
BODY |
D4 |
11 |
12 |
||||||
|
L1 |
24 |
25 |
|||||||
|
L2 |
59 |
76 |
79 |
88 |
113 |
||||
|
HANDLE |
d |
|
8 |
10 |
|||||
|
R |
|
120 |
160 |
||||||
|
WEIGHT [kg] |
0.07 |
0.11 |
0.18 |
0.27 |
0.55 |
||||
