Product Detail

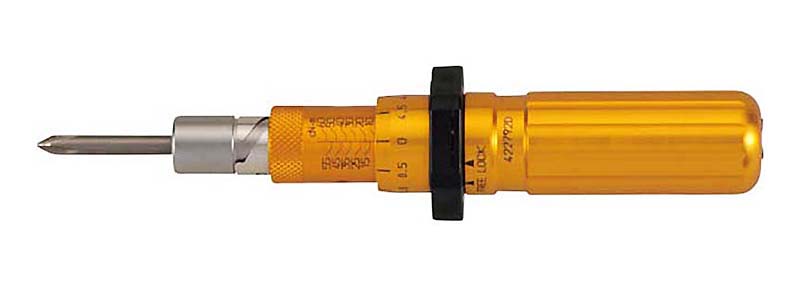

- Adjustable Type Torque Screwdriver
- ID: RTD
- Price: call
Features
- Adjustable torque screwdriver with rotary slip mechanism is idea for various jobs allowing easy change of torque setting.
- Adjustable type features external scale that can be set simply by twisting the body to line up with desired torque setting and then secured in place with black lock ring.
- Hexagonal shaped locker prevents driver from rolling when set down on flat surfaces between uses.
- Rotary slip mechanism prevents over torque.
- User will sense and hear "click" at set torque and should then stop turning, if user continues, the rotary slip mechanism will ratchet the driver without applying additional torque.
- Features Tohnichi's toggle clutch torque detection mechanism for enhanced durability.
- Accepts standard 1/4" hex root shaped bits (sold separately)
- Includes Certificate of Calibration from ISO factory.
- NIST Certificates available upon request for additional fee.
- Models available in SI, Metric, and American units.
- Select model according to units of measure and required torque range.
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class D.
- Counterclockwise tightening model available upon request
Accuracy ± 3% |
||||||||||||
S.I. MODEL |
RTD15CN |
RTD30CN |
RTD60CN |
RTD120CN |
RTD260CN |
RTD500CN |
||||||
TORQUE RANGE |
MIN.~MAX. |
2~15 |
4~30 |
10~60 |
20~120 |
60~260 |
100~500 |
|||||
GRAD. |
0.1 |
0.2 |
0.5 |
1 |
2 |
5 |
||||||
METRIC MODEL |
1.5RTD |
3RTD |
6RTD |
12RTD |
26RTD |
50RTD |
||||||
TORQUE RANGE |
MIN.~MAX |
0.2~1.5 |
0.4~3 |
1~6 |
2~12 |
6~26 |
10~50 |
|||||
GRAD. |
0.01 |
0.02 |
0.05 |
0.1 |
0.2 |
0.5 |
||||||
AMERICAN MODEL |
RTD20Z |
RTD1.3I |
RTD40Z |
RTD2.6I |
RTD80Z |
RTD5I |
RTD150Z |
RTD10I |
RTD22I |
RTD40I |
||
TORQUE RANGE |
MIN.~MAX |
ozf • in |
llbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
lbf • in |
10~40 |
|
GRAD. |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
lbf • in |
0.5 |
||
APPLICABLE SCREW |
SMALL SCREW |
(M1.8) |
M2(M2.2) |
M2.5,M3 |
(M3.5) |
M4(M4.5) |
M5,M6 |
|||||
TAPPING SCREW |
(M1.4)M1.6 |
(M1.8)M2 |
(M2.2)M2.5 |
M3(M3.5) |
M4 |
(M4.5) |
||||||
DIMENSION |
OVERALL LENGTH |
L' |
100 |
110 |
130 |
150 |
155 |
|||||
GRIP |
D1 |
16 |
20 |
35 |
44 |
33 |
||||||
`BODY |
D2 |
10.7 |
14.8 |
18 |
23 |
26 |
||||||
D3 |
11 |
|||||||||||
L1 |
18 |
24 |
||||||||||
L2 |
76.5~84.3 |
81.1~90.1 |
105~115 |
113.8~123.8 |
129~141 |
|||||||
LOCKER |
d |
23.5 |
29 |
33 |
41 |
45 |
||||||
W |
21.5 |
26.5 |
30 |
37.5 |
41 |
|||||||
WEIGHT [kg] |
0.05 |
0.08 |
0.16 |
0.27 |
0.32 |
