Product Detail
- Torque Screwdriver
- ID: LTD
- Price: call
Features

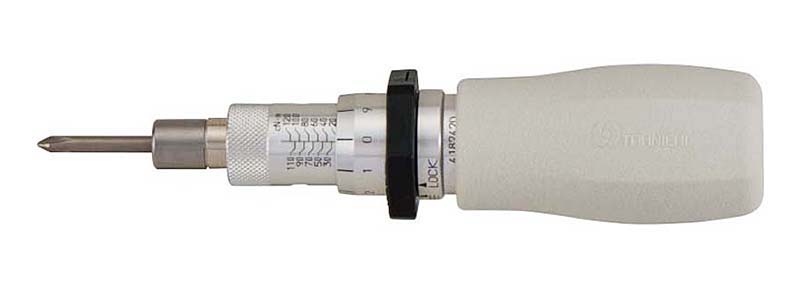

- Adjustable Limiting Torque Screwdriver
- Adjustable type features external scale that can be set simply by twisting the body to line up with desired torque value and then secured in place with black lock ring.
- Hexagonal shaped locker prevents driver from rolling when set down on flat surfaces between uses.
- Upon reaching set torque, user will sense the limit. The tool will spring back slightly and user must stop turning.
- If user, continues past the limit, tool will continue to apply additional torque.
- LTD is non rotary type. See RTD version for rotary slip feature which prevents over-torque.
- Tohnichi's toggle clutch torque detection mechanism enhances accuracy and durability.
- Accepts standard 1/4" hex root bit (sold separately)
- Includes Certificate of Calibration
- For Preset Version Limiting Screwdriver, See Model NTD
- Counterclockwise tightening model available upon request.
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class D.
|
Accuracy ± 3% |
||||||||||||||
|
S.I. MODEL |
LTD15CN |
LTD30CN |
LTD60CN |
LTD120CN |
LTD260CN |
LTD500CN |
LTD1000CN |
LTD2000CN |
||||||
|
TORQUE RANGE |
MIN.～MAX. |
2～15 |
4～30 |
10～60 |
20～120 |
60～260 |
100～500 |
200～1000 |
300～2000 |
|||||
|
GRAD. |
0.1 |
0.2 |
0.5 |
1 |
2 |
5 |
||||||||
|
METRIC MODEL |
1.5LTD |
3LTD |
6LTD |
12LTD |
26LTD |
50LTD |
100LTD |
200LTD |
||||||
|
TORQUE RANGE |
MIN.～MAX. |
0.2～1.5 |
0.4～3 |
1～6 |
2～12 |
6～26 |
10～50 |
20～100 |
30～200 |
|||||
|
GRAD. |
0.01 |
0.02 |
0.05 |
0.1 |
0.2 |
0.5 |
||||||||
|
AMERICAN MODEL |
LTD20Z |
LTD1.3I |
LTD40Z |
LTD2.6I |
LTD80Z |
LTD5I |
LTD150Z |
LTD10I |
LTD22I |
LTD40I |
LTD90I |
LTD180I |
||
|
TORQUE RANGE |
MIN.～MAX. |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
lbf • in |
10～40 |
20～90 |
30～180 |
|
|
GRAD. |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
ozf • in |
lbf • in |
lbf • in |
0.5 |
||||
|
APPLICABLE |
SMALL SCREW |
（M1.8） |
M2（M2.2） |
M2.5, M3 |
（M3.5） |
M4（M4.5） |
M5, M6 |
（M7） |
M8 |
|||||
|
TAPPING SCREW |
（M1.4）M1.6 |
（M1.8）M2 |
（M2.2）M2.5 |
M3（M3.5） |
M4 |
（M4.5） |
M6 |
（M7） |
||||||
|
DIMENSION |
OVERALL LENGTH |
L' |
100 |
110 |
130 |
150 |
155 |
185 |
255 |
|||||
|
GRIP |
D1 |
16 |
20 |
24 |
30.5 |
33 |
43 |
48 |
||||||
|
BODY |
D2 |
10.7 |
14.8 |
18 |
23 |
26 |
32 |
35 |
||||||
|
D3 |
11 |
12 |
25 |
|||||||||||
|
L1 |
18 |
24 |
25 |
35 |
||||||||||
|
L2 |
76.5～84.3 |
81.1～90.1 |
105～115 |
122.8～132.8 |
129～141 |
151～163 |
209.5～236 |
|||||||
|
LOCKER |
d |
23.5 |
29 |
33 |
41 |
45 |
|
|||||||
|
W |
21.5 |
26.5 |
30 |
37.5 |
41 |
|||||||||
|
WEIGHT [kg] |
0.05 |
0.08 |
0.13 |
0.22 |
0.33 |
0.58 |
1.15 |
|||||||
