Product Detail

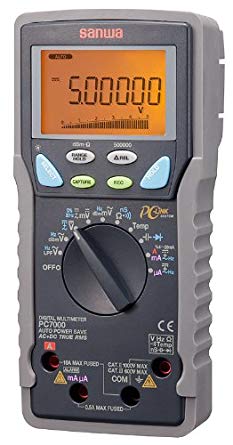

Digital Multimeter
ID: PC-7000 Digital Multimeter
Price: 30,000JPY

Product Detail
Specifications

■4-4 / 5digits 50000 count
(Selectable 5-4 / 5 digits 500000 count for DCV)
■Dual Display shows voltage/current and its frequency, and AC components and
DC components of voltage/current
■AC True RMS
■Low-pass filter for variable frequency drive(VFD) circuit
■Current (mA / μA) %4-20mA measurement
■Capture (peak hold) 0.8ms in duration
■MAX, MIN, AVG recording mode
■K type temperature -50℃〜1000℃
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle measurement
■Conductance measurement
■Dual display with backlight
■Data hold, Range hold
■Relative value
■Auto power saving mode (17min.) (cancelable)
■Optical Link USB interface (optional)

Display : numeral display 50000 & 500000 selectable, bar graph 41 segments
Sampling rate : 5 times/sec. for 50000 count, 1.25 times/sec. for 500000 count,
60 times/sec. for bar graph
Battery life : Approx. 100h (alkaline battery) at DCV range

Download this product's manual Do

安全規格

IEC61010-1:2001, IEC61010-31:2008 CAT.III 600V
Max./CAT. II 1000V Max., EN61326-1:2006

仕様

Download this product's manual Do
